EINSTAR 3D Scanner

Shining 3DOn order
Price
€955.09

Price excluding VAT. The VAT of the delivery country is added.

1

Illustrative model 3D model generated from product photos, at the dimensions in the datasheet. Details may differ from the product. Licenses and attributions

EINSTAR 3D Scanner

Illustrative model 3D model generated from product photos, at the dimensions in the datasheet. Details may differ from the product.Datasheet dimensions (width, depth, height): 5.5 cm × 4.6 cm × 22 cmThe person is 1.75 m tall.Drag to rotate, scroll to zoom.

Product details

Package weight1.95 kg
Product dimensions (manufacturer)5.5 × 4.6 × 22 cm
Package dimensions34.5 x 27.5 x 11.5 cm
Categories3D scanners

Description

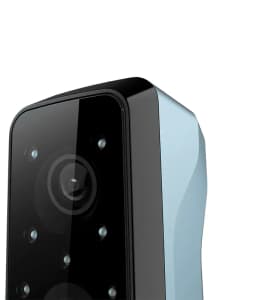

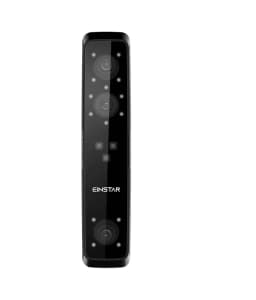

The Shining 3D EinStar is an affordable portable 3D scanner that makes high-quality 3D data available to everyone. It uses eye-safe infrared VCSEL structured light, captures true color with a built-in RGB camera and works with a single USB cable for both data and power. Its simple plug and play workflow suits beginners as well as experienced users.

Key features

  • Point cloud spacing from 0.1 mm to 3 mm, captured quickly and easily
  • Scan speed of 980,000 points per second and up to 14 FPS, with intelligent tracking and automatic alignment
  • Built-in RGB camera for 3D data in true colors
  • Detail enhancement technology that optimizes the point cloud for complete data

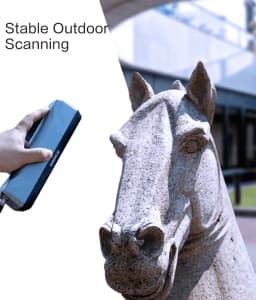

  • Stable scanning outdoors, thanks to 3 infrared VCSEL projectors, 2 stereo depth cameras and 1 RGB camera
  • Flexible working distance for both small and large objects
  • No visible projector light during scanning, so it is comfortable for the eyes, and a Hair Mode improves data when scanning people
  • Ergonomic design with a single USB cable for data and power

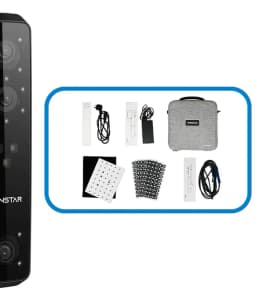

What's in the box

  • EinStar portable 3D scanner with scanning software
  • Lightweight carrying case with silicone cover, user guide, positioning markers, lens wipe cloth, carrying strap, power supply and USB cable

Typical uses

  • Design, prototyping and 3D printing workflows
  • Scanning people, objects and larger items in classrooms, studios and workshops

Technical specifications

Scan modeStructured light, infrared VCSEL (Class 1, eye-safe)
Point distance0.1 to 3 mm
Working distance160 to 1400 mm, optimum 400 mm
Scan speed980,000 points/s, up to 14 FPS
Alignment modesFeature, hybrid, texture and global markers
Texture scanYes
Outdoor scanningYes
InterfaceUSB 2.0 or above
Output formatsOBJ, STL, PLY, P3, 3MF
Scanner size and weight220 x 46 x 55 mm, 500 g
Operating conditions0 to 40 °C, humidity 10 to 90%
Recommended PCWindows 10/11 64-bit, NVIDIA GTX1060 with 6 GB or more, Intel i7-11800H, 32 GB RAM or more
Minimum PCWindows 10 64-bit, NVIDIA GTX1050 with 4 GB or more, Intel i7-7700H, 16 GB RAM
Share:FacebookLinkedInWhatsApp

Frequently asked questions

Can the EinStar capture color?

Yes. A built-in RGB camera captures texture, so the 3D data keeps true colors.

Can it scan outdoors?

Yes. Its three infrared VCSEL projectors, two stereo depth cameras and one RGB camera give stable results outdoors.

Which file formats can I export?

OBJ, STL, PLY, P3 and 3MF, which work with 3D printers and 3D design software.

What computer does it need?

The minimum is Windows 10 64-bit, an NVIDIA GTX1050 with at least 4 GB, an Intel i7-7700H and 16 GB of RAM. A GTX1060 with 6 GB, an i7-11800H and 32 GB of RAM are recommended.

What is included in the package?

The scanner with its software, a carrying case, silicone cover, user guide, positioning markers, lens wipe cloth, carrying strap, power supply and USB cable.
