ROSMASTER R2 with nVidia Jetson ORIN Nano 8GB

YahboomOn order
Price
€3,008.88

Price excluding VAT. The VAT of the delivery country is added.

1

Product details

Package weight4.8 kg
Package dimensions45 x 35 x 25 cm
CategoriesHobby, Public institutions, Education, Educational kits

Description

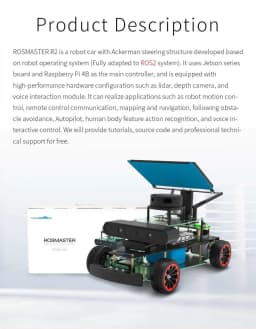

ROSMASTER R2

It is a car with Ackerman directional geometry developed on the basis of the ROS2 system and designed for autonomous driving.

It comes with the Jetson Orin NANO 8GB developer kit, being equipped with high-performance hardware configurations, such as lidar, depth camera, voice interaction mode, rubber tires and 520 racing engine.

The robot can perform navigation and mapping, obstacle avoidance, autonomous driving, gesture and voice recognition. It can also be controlled from the mobile application, controller, from the ROS operating system, a computer keyboard, as well as other remote control methods.

Additional information

Video: Yahboom

Technical specifications motherboard ROSMASTER R2 nVidia Jetson Orin Nano 8GB:

ParameterValue
GPUNVIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory8GB 128-bit LPDDR5 68GB/s
StorageSupports SD card slot and external NVMe
Video Encode1080p30 supported by 1-2 CPU cores
Video Decode1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Power7W-15W
Reference carrier board2x MIPI CSI-2 22-pin camera connectors 2x M.2 Key M, M.2 Key E 4x USB 3.2 Gen2 Type-A USB Type-C for UFP Gigabit Ethernet DisplayPort microSD slot 40-pin expansion header DC power jack
