Conveyor belt for Dobot Magician

DobotSKU: Dm-1On order

Price

€570.37

Price excluding VAT. The VAT of the delivery country is added.

Business price (excl. VAT)

Illustrative model 3D model generated from product photos, at approximate scale. Dimensions and details may differ from the product. Licenses and attributions

Product details

Package weight5.34 kg

Package dimensions78.5 x 28.5 x 8.5 cm

CategoriesAccessories, Public institutions, Education, Educational kits

Description

The Dobot conveyor belt is an accessory for the Dobot Magician robotic arm that lets you build a complete production line simulation. It combines a belt with adjustable speed, a distance sensor and a color recognition sensor with the programmable Magician arm, which makes it a practical tool for classrooms, labs and factory-style demonstrations. Please note that the Dobot Magician arm is not included in the package.

Key features

Belt speed, distance and on/off switching are programmable, with stable running
Distance sensor to check the position of objects, suited to object recognition and distance verification
Color recognition sensor with a built-in white LED that can be switched on and off
Well suited to sorting and classifying objects together with the Magician arm
Works well with colored wooden cubes, which are easy to grip and handle

Typical uses

Teaching automation, robotics and programming in schools and universities
Simulating production lines and factory scenes
Object sorting, classification and position checking exercises

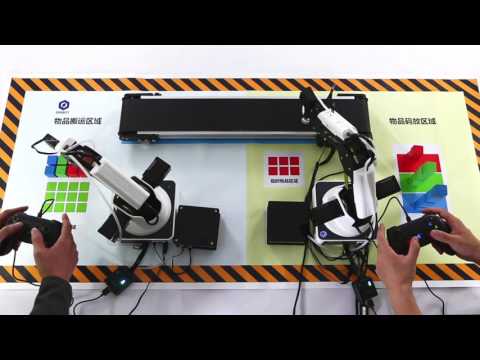

Video: Dobot

Technical specifications

Load	0.5 kg
Conveying distance	600 mm
Maximum speed	120 mm/s
Maximum acceleration	1100 mm/s²
Distance sensor	Range 20 to 150 mm, analog output, 4.5 to 5.5 V input
Color sensor	3 to 5 V input, detects matte objects, white LED with on/off control
Net weight	4.2 kg
