DOBOT Magician Lite robotic arm

DobotSKU: Dm-LOn order

Price

€894.97

Price excluding VAT. The VAT of the delivery country is added.

Business price (excl. VAT)

Illustrative model 3D model generated from product photos, at approximate scale. Dimensions and details may differ from the product. Licenses and attributions

Description

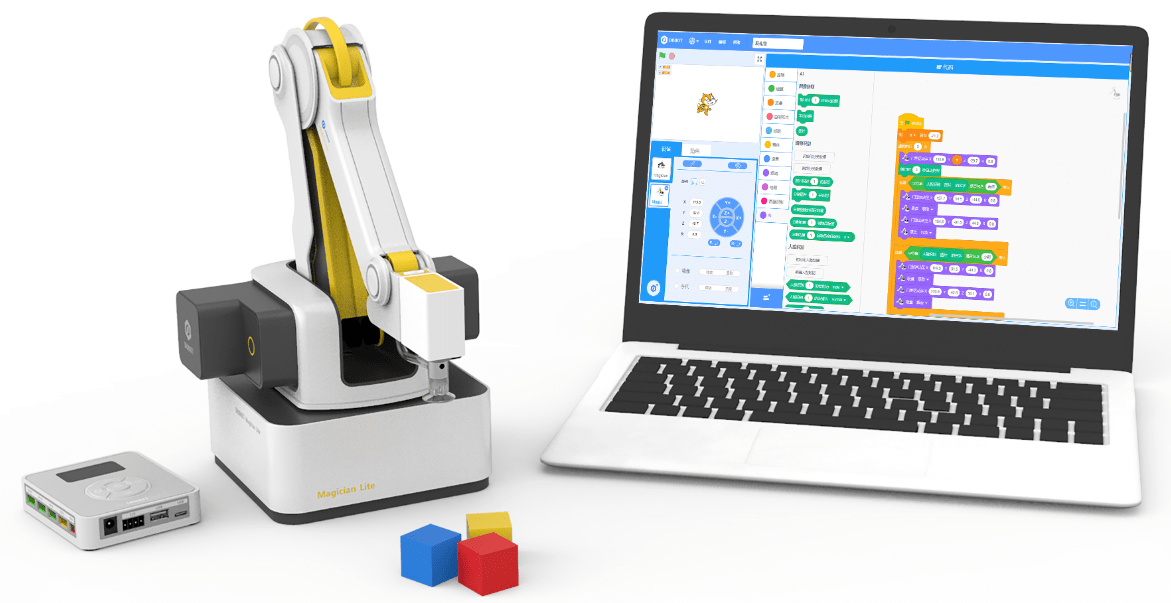

DOBOT Magician Lite

The perfect K12 platform for students, teachers and educators

DOBOT Magician Lite is the intelligent, multifunctional and easy-to-use robotic arm. Magician Lite is based on numerous hardware and software interaction methods and expansion interfaces to maximize the freedom and creativity of any user. Created to be used constructively through studying and learning, specifically for students to discover how artificial intelligence and mechanics work.

DOBOT Magician Lite - Sourcing Services Bulgaria

DOBOT Magician Lite - Sourcing Services Bulgaria

Excellent performance, safe and simple to use

DOBOT Magician Lite is compact and weighs only 2.4 kg, making it portable and easy to take anywhere you need. Its positioning repeatability is 0.2 mm, payload 0.25 kg and reach 340 mm. It has a gripper, suction cup, pen holder and more.
Maximum reach 340 mm Maximum Load 0.25 kg Repeatability 0.2 mm

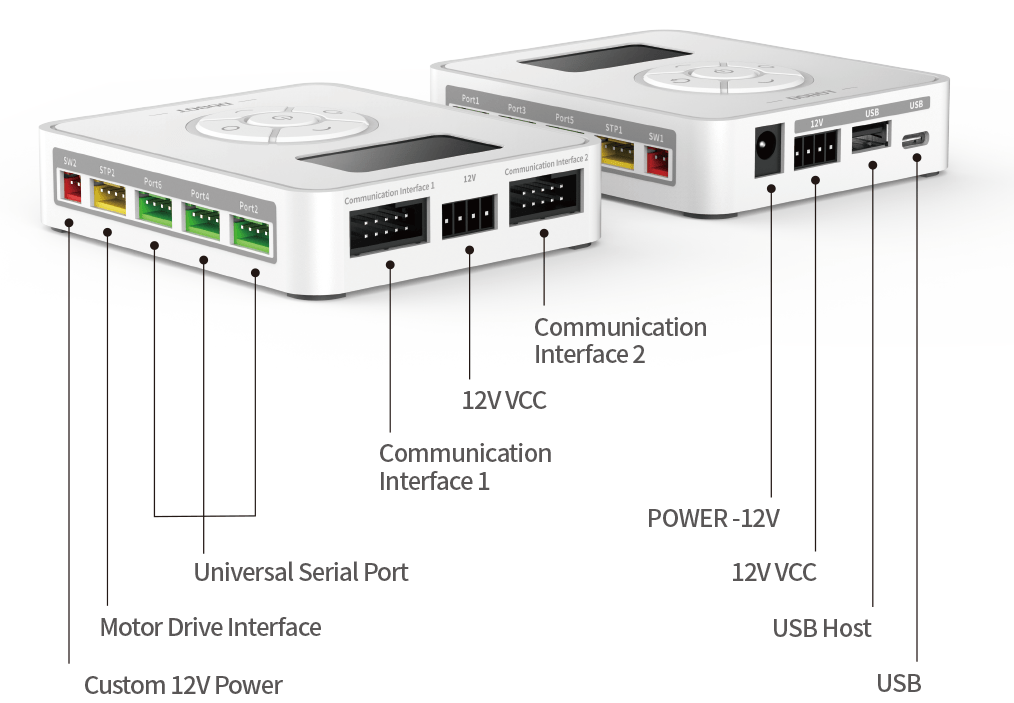

Magic Box, specially for maximum use of creativity

DOBOT Magician features an external controller called "Magic Box", which separates the motion control algorithm and user tasks to allow more convenience for programming and creation. The robot also supports Bluetooth connection. It features 12 expansion interfaces and ensures maximum openness and compatibility.

Graphic programming (software)

With the new DOBOT Magician Lite Scratch software platform, students can program, create games and animations by simply dragging and dropping to control the robot's every move and learn how artificial intelligence works.

Project-based teaching

DOBOT Magician comes with a complete curriculum system, which is divided into three stages, from beginner to advanced level. The curriculum offers a variety of teaching demonstrations that focus on experiential, project-based and exploratory learning.

Multiple accessories for the perfect activity

DOBOT Magician offers many kits for users to choose from, including writing and drawing kit, industrial 4.0 kit, artificial intelligence study kit, wireless kit and sensor kit.

TECHNICAL SPECIFICATIONS

Video: Dobot

DOBOT Magician Lite

Parameter	Value
Degree of freedom	4
Maximum payload	250 g
Maximum reach	340 mm
Repeatability	±0.2 mm
Voltage	100V-240V AC, 50/60 Hz
Internal consumption power	12V ～ 5A DC
Temperature of the working environment	-5°C～45°C
Maximum power consumption	60W Max
Communication mode	USB Virtual Serial Port / Serial Port
Software	DobotStudio/DobotScratch
Weight	2.4 kg
Rear arm / Forearm	150 mm
The size of the base	146 mm×146 mm

Magic Box

Parameter	Value
MCU	ARM 32-bit Cortex-M4
Primary frequency	168 MHz
Voltage	100V-240V AC, 50/60 Hz
Internal consumption power	12V ～ 5A DC
Temperature of the working environment	-5°C～45°C
Maximum power consumption	60W Max
Communication module	USB Virtual Serial Port/Serial Port/Bluetooth
The programming language	MicroPython
Software	DobotStudio/DobotScratch
Weight	98 g
Size	95 mm×80 mm×21.5 mm

Axis movement

Parameter	Value
Axis 1- Base	-135° to +135°
Axis 2- Rear Arm	-5° to +80°
Axis 3- Forearm	-10° to +85°
Axis 4 - End effector	-145° to +145°

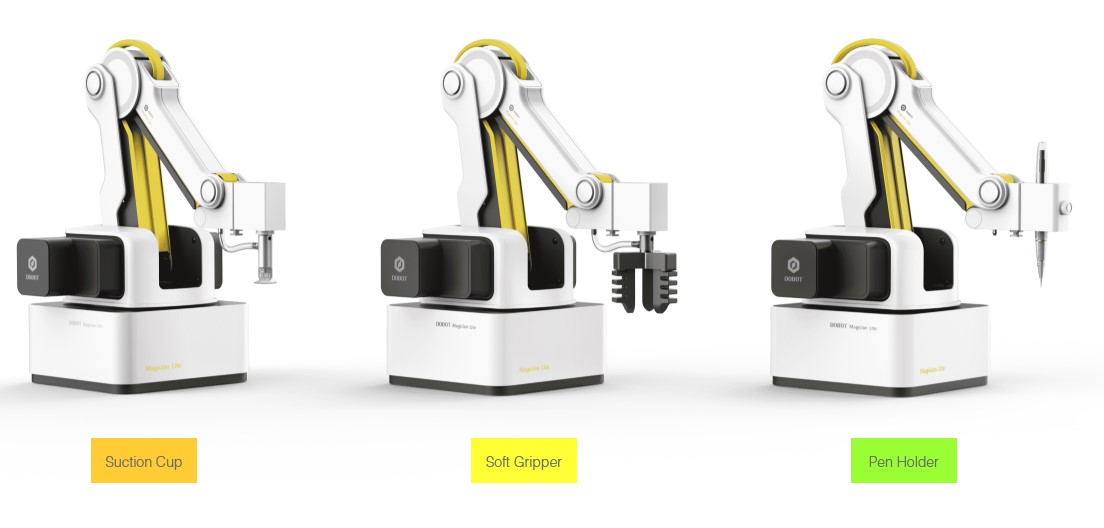

End effectors

Parameter	Value
Pen holder	Pen diameter: 8-12 mm
Suction cup	Built for pumping air and operates under negative pressure. The diameter of the suction cup is 20 mm.
Gripper	Built for air pumping and works under positive and negative pressure with a maximum opening and closing distance of 50 mm.

Interfaces

Category	Parameter	Details
Power interface	×2	4PIN, 12V～3A DC
Multi-functional communication	×2	10PIN, Serial Communication
I/O Interface	×6	Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc
Stepper motor interface	×2	Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V 1A
12V Power consumption	×2	Red Terminal, 2PIN, 12V, 3A Max
