Tonybot Humanoid Robot

SKU: TonybotOn order
Price
€1,273.67

Price excluding VAT. The VAT of the delivery country is added.

1

Product details

Package weight3.1 kg
Package dimensions40 x 30 x 20 cm
CategoriesHobby, Public institutions, Education, Educational kits

Description

Tonybot is a programmable humanoid robot based on the Arduino platform. Its body is equipped with 16 high voltage servo motors. There are more than 10 built-in action groups through which it can perform walking, dancing, exercising, etc.
Tonybot is equipped with a sensor expansion kit for you to do secondary development through Arduino programming.
With a medium assembly difficulty, the humanoid robot Tonybot will help you get familiar with science and robotics. From the robot assembly procedure where you will familiarize yourself with aspects related to the mechanics of the robot, and later after installing the software in the tablet or desktop version you will discover how you can control every precise movement of the robot with the help of the 16 motors.

Features
  • Bright New RGB Ultrasonic Sensor
  • Provides open source Arduino and annotated code
  • 11.1V high voltage servo can reduce current more than 60%
  • New version of PC software for easier operation
  • Compatible with Hiwonder sensors



Stand Up Smart
Tonybot has a built-in accelerometer to get its current position by reading, filtering, calculating, etc. After falling, it can detect the fall and stand up on its own.

Bright Ultrasonic Sensor

The new ultrasonic sensor provides accurate measurement and detection with RGB. It can display millions of colors for a lighting effect by programming.

Humanoid robot controller:
- Built-in accelerometer
- Buzzer for low voltage alarm
- Supports serial communication
- Online troubleshooting and free PC driver

Arduino Secondary Development Controller
- Built-in accelerometer, IR receiver, buzzer etc
- 3 IIC ports for expansion
- Nano pins and 4PIN ports
- Compatible with Hiwonder sensors



Technical specifications:
Video: Hiwonder

Arduino Secondary Development Controller

ParameterValue
Body Size:Height 379* Width 187*Thickness 121 (mm)
Body weight:About 1.8 kg
Body material:Aluminum alloy
Ultrasonic Distance2~400 cm
Power battery:lithium battery 11.1V 2000mAh 10C
Work schedule:approximately 80 min-120 min continuously
DOFHead: 1DOF Shoulder: 2DOF Hand: 2 DOF each hand Leg: 4 DOF each leg Foot: 1 DOF each foot
Control system:special controller for humanoid robot and secondary controller development Arduino Software PC: Graphics software for PC

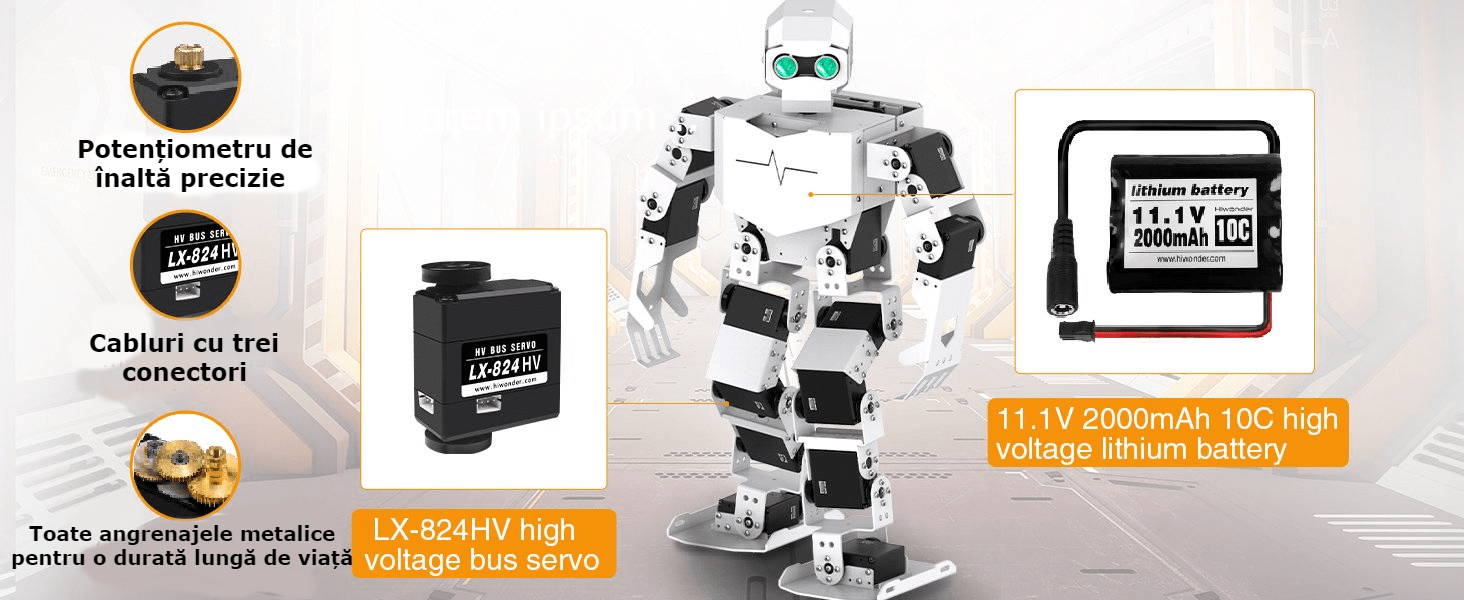

Other parameters:Servo parameters: LX-824HV high voltage bus servo; metal gears; weight: about 57 g; Dimension: 39.82*20.09*51.10 mm; Torque: 17 kg/cm 11.1V Control method: control PC software/infrared remote control
Tonybot Humanoid Robot Standard Version Packing List• 1 * humanoid robot Tonybot (assembled ) • 1 * 11.1V lithium battery charger • 1* nano data cable • 1 * infrared remote control • 1 * micro USB cable • 1 * screwdriver • 1* Accessory kit
