CREATIVE package of 3D printing, engraving and CNC cutting

SKU: CRE-CNCDiscontinued

Discontinued product

The manufacturer no longer makes this model. Ask us for a quote on a current alternative.

Request a quote

Product details

Package weight19 kg

Package dimensions50 x 60 x 40 cm

CategoriesAccessories, FDM, Hobby, 3D printers, Education

Description

The CREATIVE 3D Printing, Engraving and CNC Cutting Package

It supports those who want to test three different technologies with one 3-in-1 equipment. Dobot Mooz 2 Plus 3D Printer has 3 different heads to experience 3D printing, laser engraving and CNC cutting.

What does the CREATIVE 3D Printing, Engraving and CNC Cutting Package include?

Dobot Mooz 2 Plus 3-in-1 3D Printer ready to print.
Enclosed premises to provide a safe working environment, including for educational purposes
(FREE) 1 kg PLA Devil Design filament.
(FREE) 1 kg of Devil Design PETG filament.
(FREE) START Guide to 3D Printing (with general information about 3D printing technology).

What services do we offer you and how do we help you?

(FREE) Initial technical training to familiarize yourself with the main functions and how to work with the Dobot Mooz 2 Plus 3D printer 3 in 1.
(FREE) Technical Support to get in touch with our specialists whenever you encounter difficulties.
(FREE) Personalized recommendations and tips depending on the projects you want to make with your 3D printer.

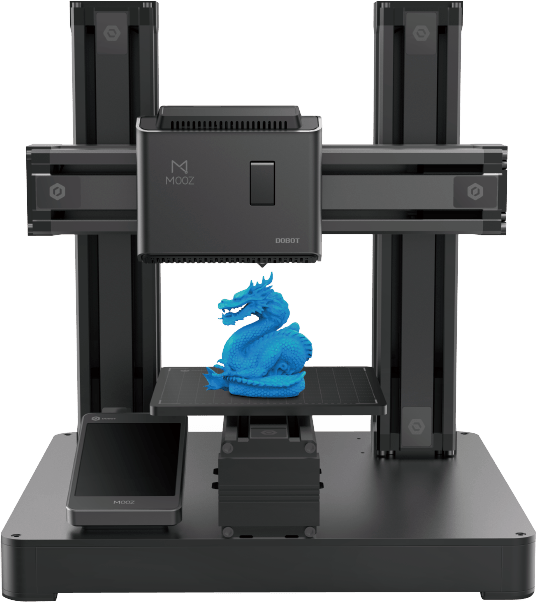

DOBOT MOOZ is a 3-in-1 3D printer with an aluminium alloy body. It has an all-in-one design with interchangeable heads for 3D printing, laser engraving and CNC carving. The linear guide, stepper motor and CNC machined body keep MOOZ stable with high precision of 0.02 mm. Quick assembly, protective case, easy-to-use controller and intuitive guide make MOOZ suitable for beginners, professionals, even teachers.

THE QUALITY OF SURPRISING DETAILS

DOBOT MOOZ. 3D Printing / CNC Carving / Laser Engraving

PRODUCT COMPARISON

DOBOT 3D Printer vs Other 3D Printer

3 DIFFERENT MODES, FREE COMBINATION

With interchangeable components, you can choose to customize the MOOZ printer in three creative tool combinations, including single-axis, dual-axis and delta mode variants.

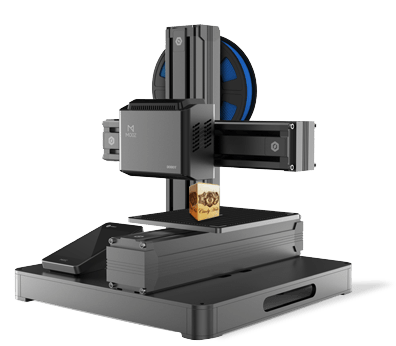

MOOZ-1 (Single Axis)

Simple and refined
Support 3D printing and laser engraving

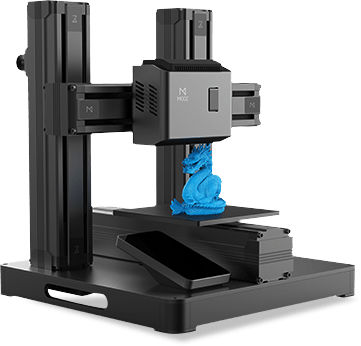

MOOZ-2 (with two axes):

Great stability and high precision
Support 3D printing, CNC carving and laser engraving

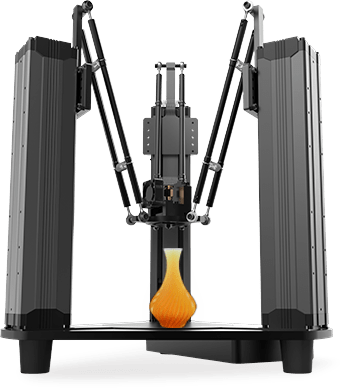

MOOZ-3 (delta):

High quality of printed elements
Special for highlighting colors

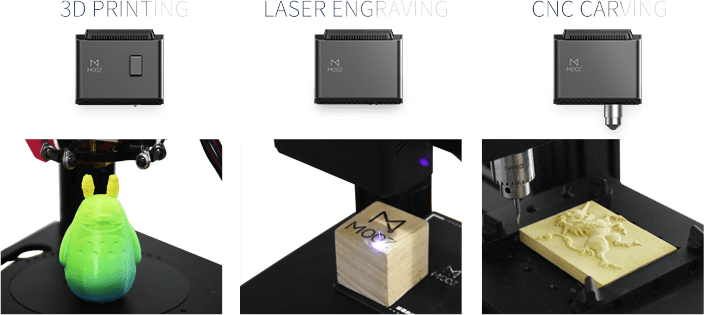

ONE MOOZ, THREE WAYS TO USE

Simply by changing different print heads, MOOZ is capable of 3D printing, laser engraving and CNC carving.

ALUMINUM BODY, TOUCH SENSOR

MOOZ is designed from quality aluminum alloys, which not only adds beauty and elegance to the body, but also increases stability and reduces vibration during the working process.

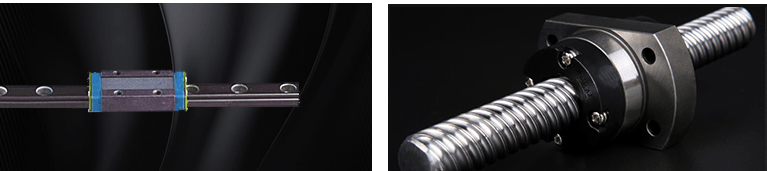

LINEAR GUIDE THROUGH REPEATABILITY

MOOZ applies a linear guide, stepper motor and screw rod to ensure the accuracy of your every movement. The position repeatability of MOOZ is up to 0.02 mm, fully meeting the printing requirements.

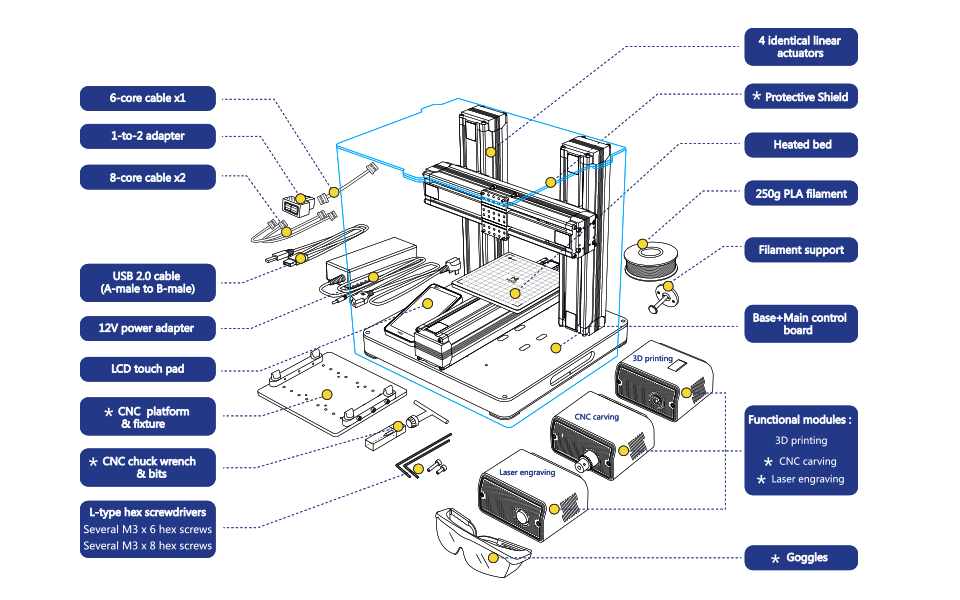

UNIQUE MODULAR DESIGN, EASY TO OPERATE AND HOLD

Due to the modular design of the MOOZ printer, it only takes 10 minutes to assemble it and start using it. The modular design makes operation, maintenance and development much easier.

EASY TO USE CONTROL. START PRINTING OBJECTS WITH JUST ONE CLICK

MOOZ is equipped with a micro-computer controller accompanied by a touch screen. When MOOZ is connected to a thumb drive or SD card, you can directly use the controller to operate MOOZ and start printing, which saves you from the possible trouble of connecting a computer/laptop.

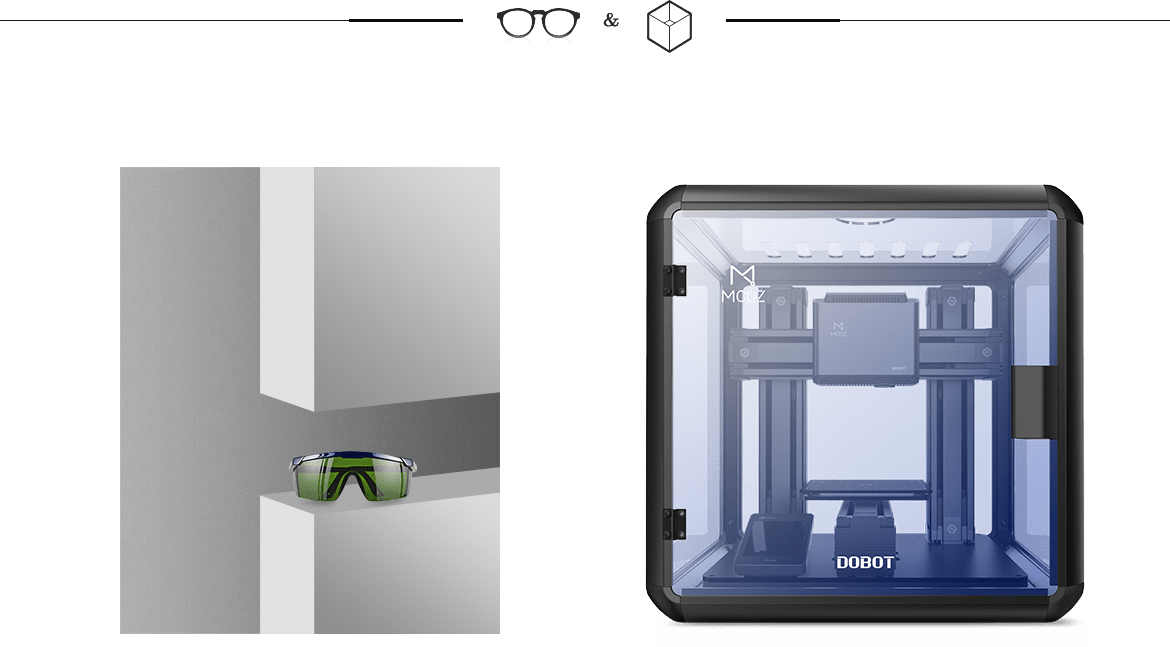

TOTAL SECURITY MEASURES TO ENSURE SAFETY

For the laser engraving kit, MOOZ provides a professional protective box and safety glasses to guarantee you 100% safety to use.

APPS

(3D printing is widely used in maker education, owns DIY design, gift customization, kits and more)

TECHNICAL SPECIFICATIONS

Mooz Model

MOOZ-2 PLUS

Parameters

3D printing

Laser Engraving

CNC

Parameters

Parameter	Value
Model	DT-MZ-2ZSG-03C
Size	355 * 355 * 390 mm
Number of modules	4
Print size	200 * 200 * 190 mm
Main materials	Aluminum alloy
Mode of operation	Touch Screen, 3.5 inches
Internal adapter	100-240V, 50/60Hz, 1.8Amax
External adapter	12V~10A

3D printing

Parameter	Value
Nozzle diameter	0.4 mm
Print resolution	0.05~0.3 mm
Materials used	1.75 mm PLA, TPU, PETG, & Flexible Materials
Print speed	0 ~ 80 mm/s
Nozzle temperature	250℃ Max.
Print bed temperature	80℃ Max. (25℃ambient temp.)

Laser Engraving

Parameter	Value
Laser Power	1.6W
Supported Materials	wood, bamboo, leather, paper, plastic, textile, & non-transparent acrylic

CNC

Parameter	Value
Spindle speed	8000rpm Max
Print Pliers	0~4 mm
CNC standard size	3.175 mm * 0.3 mm * 30°V cutter; 1.5 mm spiraling milling cutter
Materials used	wood, bamboo, acrylic, PCB, carbon fiber, plastic, etc
