Hiwonder LeArm robotic arm, aluminum, 6 servos

HiwonderSKU: br-6On order
Price
€461.70

Price excluding VAT. The VAT of the delivery country is added.

Selected option: Individual robot (unassembled)

Model
1

Illustrative model 3D model generated from product photos, at approximate scale. Dimensions and details may differ from the product. Licenses and attributions

Hiwonder LeArm robotic arm, aluminum, 6 servos

Illustrative model 3D model generated from product photos, at approximate scale. Dimensions and details may differ from the product.The person is 1.75 m tall.Drag to rotate, scroll to zoom.

Product details

Package weight2.2 kg
Package dimensions40 x 30 x 15 cm
CategoriesHobby, Education, Educational kits

Description

Video: Hiwonder
LeArm with the sensor kit, in a claw game and as a voice-activated lock, in the official Hiwonder video.
Robotic Arm Components:

Robotic aluminum arm with 6 servo motors - IRIS Robotics

With a robotic arm you fully experience science and robotics! As the user builds the robotic arm, they discover basic functionalities, then can create new ones. Learning happens intuitively through an application that helps you learn the fundamentals of C++ programming.
Build the robotic arm step by step based on the assembly instructions provided in the manual and discover how you can control each motor of the arm. Easy to control through an application that allows you to control it both on desktop and mobile, you can learn C++ programming both intuitively by drag and drop and by actually writing the program. The robotic arm is great for bachelor's thesis projects or other educational projects.

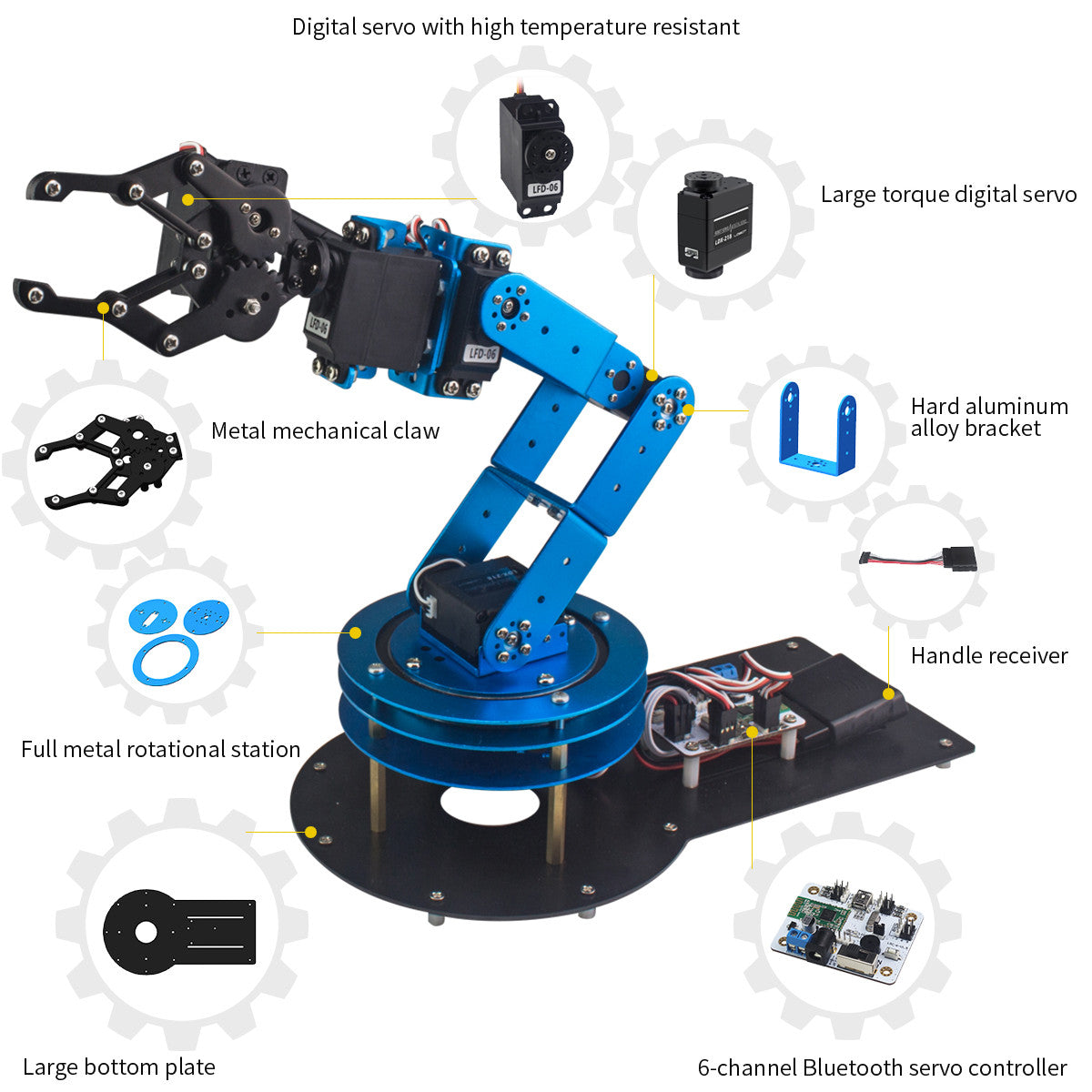

Metal construction Robotic Arm:
  • Metal bracket
  • Aluminum bracket
  • Metal Bottom Plate
The 6DOF structural design makes the robotic arm move flexibly so that it can grasp objects from any direction.
The precision of the servos is ensured by:
-LDX-218: 17 kg·cm high torque at 7.4 V, double ball bearing, pluggable cable
-LFD-06: high temperature resistance, prevent rotor stuck
-LD-1501MG: 17 kg·cm high torque at 7.4 V, for large bottom plate

Robotic aluminum arm with 6 servo motors - IRIS Robotics

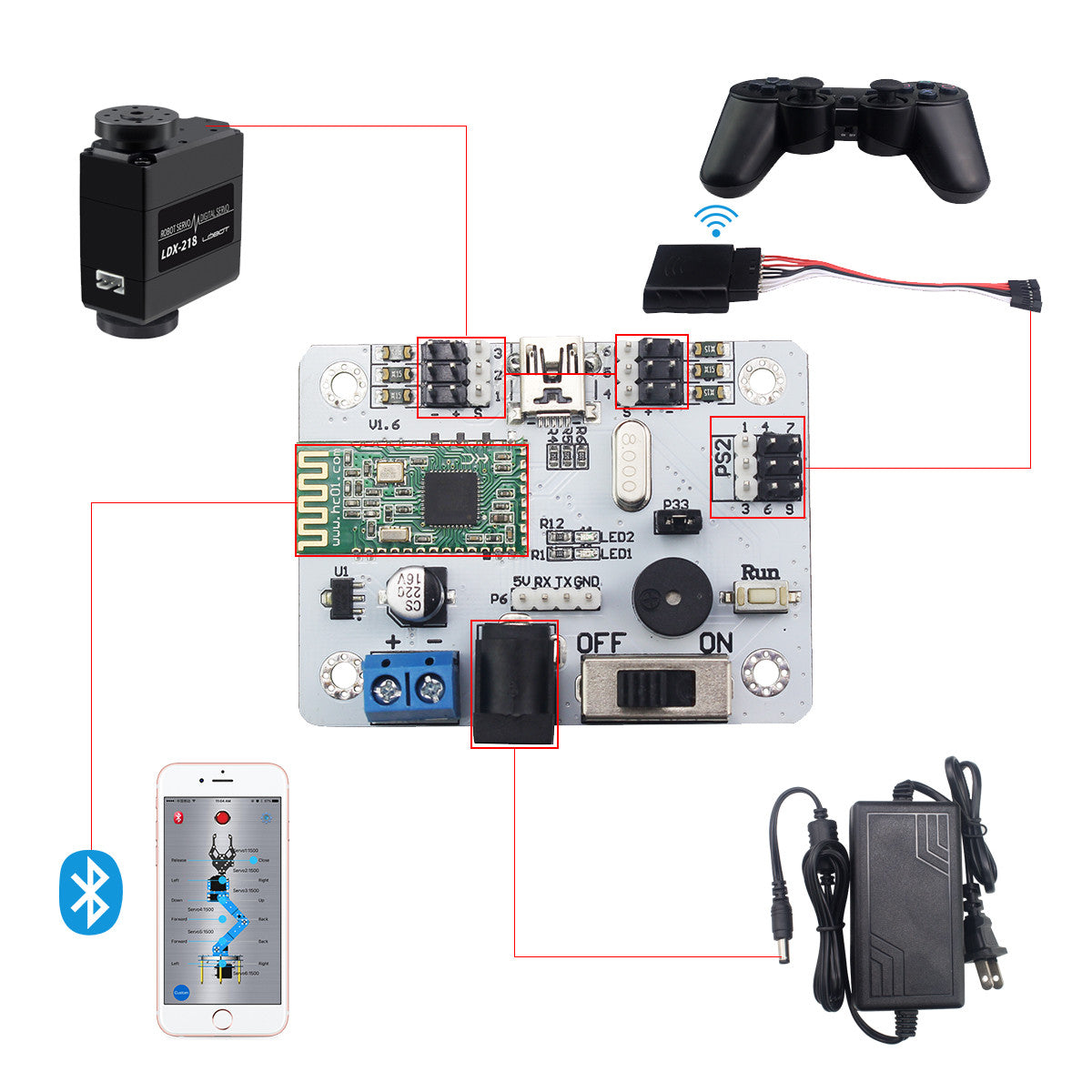

Robotic arm uses 6-channel servo controller with built-in bluetooth 4.0 module
-All interfaces have overcurrent protection, which reduces the risk of servo motor burning due to stuck rotor
-Each action group can have up to 1020 moves
- Low voltage alarm
-TTL serial communication support, compatible for Arduino
Platform for developing custom featuresAluminum robotic arm with 6 servos - IRIS Robotics
Unboxing LeArm: the parts, the controller and the sensors. The video carries the LOBOT logo, the former name of Hiwonder.

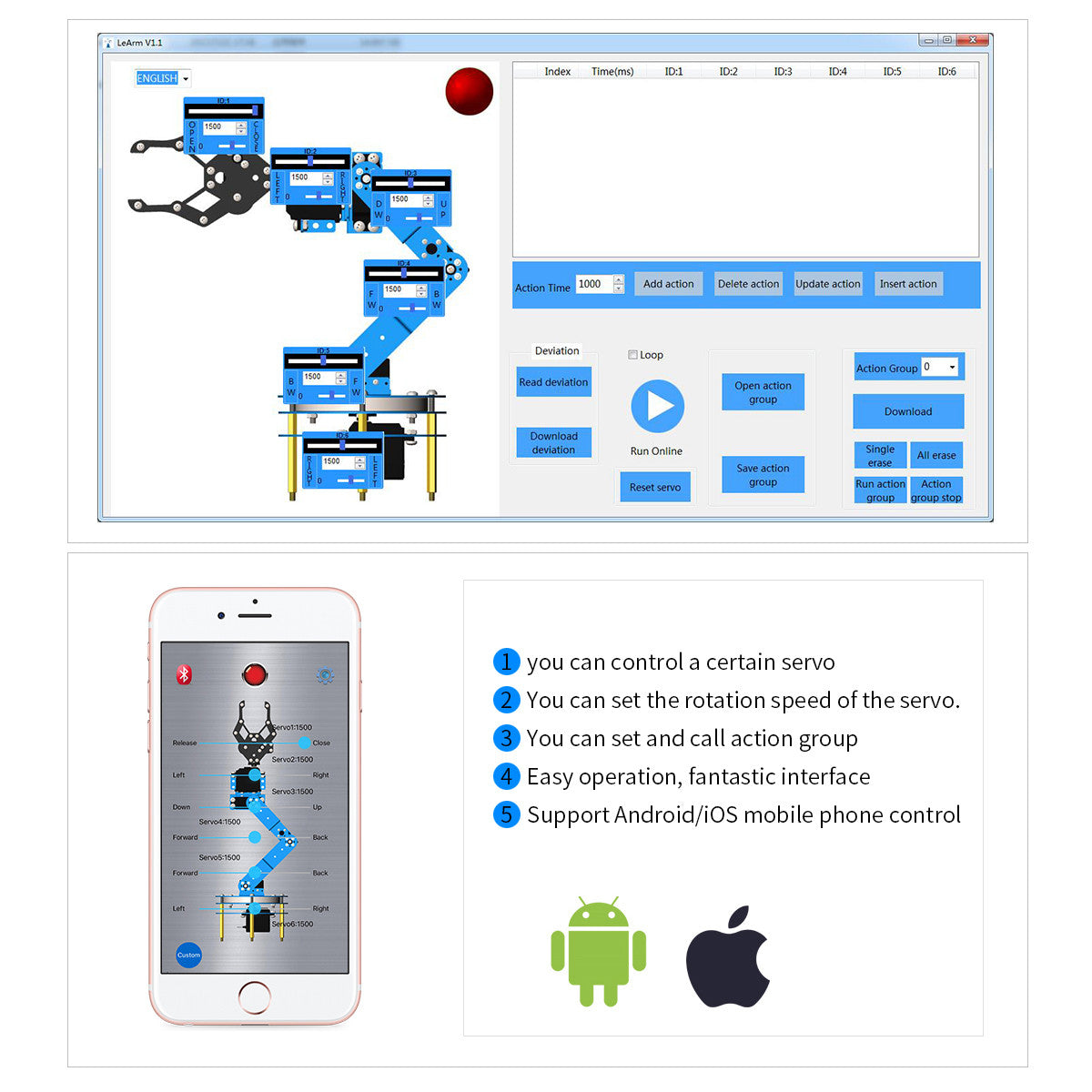

Control methods
  • controller
  • Android APP/ iOS application
*The materials for building this robotic arm and installing the software will be sent to you in physical form in the package and in electronic form to your email address.

Technical specifications

ParameterValue
ModelIndividual robot (unassembled), Individual robot (assembled), Extra sensor set (unassembled), Extra sensor set (assembled)
Package dimensions40 x 30 x 15 cm
