H5S Humanoid Robot

SKU: rb-3sOn order

Price

€636.83

Price excluding VAT. The VAT of the delivery country is added.

Business price (excl. VAT)

Selected option: Individual robot (unassembled)

Model

Description

Video: Hiwonder

H5S dances, walks and plays soccer, in the official Hiwonder video.

The H5S Humanoid Robot impresses users with the multitude of movements it can make. In addition to the flexibility given by the product's 16 servo motors, it also has interactive functions by which it follows a certain dance or sings a certain song. Functionalities can be adjusted and controlled intuitively from the desktop or mobile application by the user.

With a medium assembly difficulty, the H5S humanoid robot will help you get familiar with science and robotics. From the robot assembly procedure where you will familiarize yourself with aspects related to the mechanics of the robot, and later after installing the software in the tablet or desktop version you will discover how you can control every precise movement of the robot with the help of the 16 motors.

H5S Humanoid Robot Features

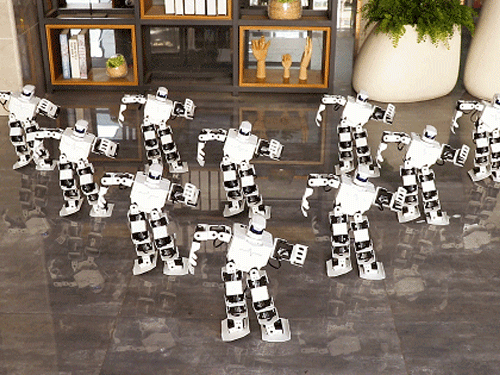

APP Group Control: H5S has a built-in wireless communication module that supports multiple robots to work at the same time. The performance can be easily achieved through the application on the mobile phone.

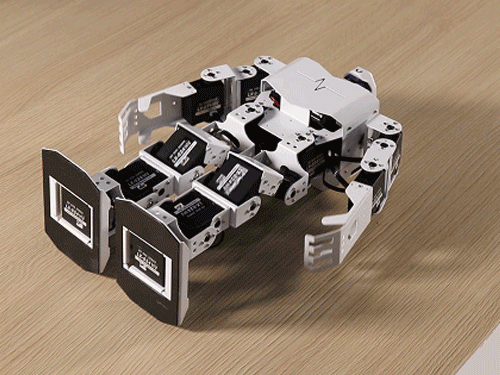

Automatic lifting: Equipped with tilt sensor, H5S humanoid robot can automatically recognize the direction when it falls down and then it can pick itself up. Additionally, various action groups have been downloaded into the controller.

Remote control of the device:

PC software control: With provided PC software, you can check the running data of each servo and easily program your own actions. Hiwonder's detailed tutorials will show you step by step.
Mobile phone control: H5S supports Android / iOS smart phone control. There are Dancing Mode, Football Mode and Fighting Mode for your choice!

Powerful control system: The specified H5S servo controller is designed for high performance. It has built-in tilt sensor, MP3 module and large memory of 16 MB. It supports free PC driver, TTL serial port communication, offline operation and low voltage alarm to protect the robot.

First steps with H5S: switching it on and connecting it to a computer. The video uses the robot's former name, RoboSoul H5S.

Technical specifications

Movement mode - legs
Weight: 1.7 kg
Battery: Power: 11.1V 2000 mAh 10C
Features - dance, sing and move ensembles
Control modes - PC control / Android + iOS App control / iPad control / Handle control
Degrees of freedom: 2 on shoulders, 2 on each arm, 4 on each leg, 1 on each sole.
Material - Aluminum
Dimensions: 366 * 190 * 115 mm (H * L * W)
Servo parameters: High voltage bus servo LX-824HV; metal gears; weight: 57 g; size: 39.82 * 20.09 * 51.10 mm; Torque: 17 kg / cm 11.1V

Technical specifications

Parameter	Value
Model	Individual robot (unassembled), Individual robot (assembled), Extra sensor set (unassembled), Extra sensor set (assembled)
Package dimensions	40 x 30 x 25 cm
