Flashforge Creator 4 3D printer

The Flashforge Creator 4 3D printer is a multifunctional, flexible and high-performance printer. Equipped with three types of extruders, which can meet various printing needs by selecting the right printing module according to different types of filaments. Available with HT extruder (320 °C) or HS extruder (360 °C).

Build volume

Flashforge Creator 4 has a perfect build size for most applications. 400 mm x 350 mm x 500 mm is ideal for prototyping.

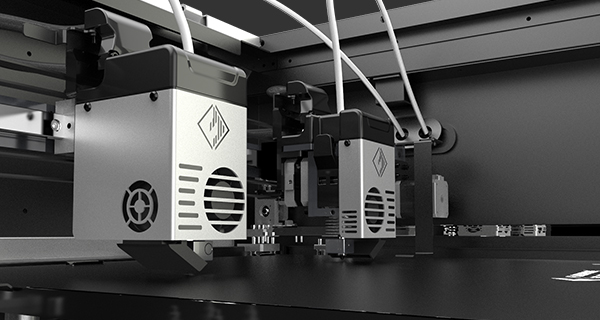

Independent double extruder

Unlike the traditional dual extruder, when one extruder is printing, the other is far away from the print area of the model, so that the filament does not drip and thus spoil the quality of the model. While printing the same pattern in batch, the output is doubled, making it the best choice for mass production.

Heated build chamber

Advanced thermal control software design can preheat and maintain temperature before and after printing. The thermal control system maintains a constant chamber temperature of 65℃, reducing thermal shrinkage of the model through the printing process. It avoids the deformation and cracking of ABS/PC/PA and other engineering filaments and guarantees the quality and dimensional accuracy of the model, improving the printing success rate.

High printing temperature

With the included high temperature extruder, with Flashforge Creator 4 you can print most filaments on the market today thanks to an operating temperature of 320°C Filament supported:PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT

Heated build plate

The build plate can be heated to a temperature of 130°C, which makes it easy to print ABS, nylon and similar materials.

Intelligent filament management

Before printing, the temperature can be automatically adapted by the intelligent system according to the type of filament. The intelligent setting that maintains a constant room temperature guarantees the success rate of printing. After printing, the intelligent control system helps to adjust the cooling temperature, to be ready for the next print without waiting.

Clean air

Flashforge Creator 4 has the included HEPA 13 air filter ensures the removal of hazardous vapors and particles before they reach the outside of the printer.

Camera control

The built-in camera gives you the option to monitor the current print and see the progress

Resume from power down

If 3D printing stops, you can easily continue it. Save time, filament and money from discontinued 3D prints.

Extruder-F For 85A flexible filament.
Extruder-HT Dedicated filament for the engineering industry.
Extruder-HS Composite filaments and carbon fiber.

Extruder-F
For 85A flexible filament

Print speed
100 mm/s
Filament diameter
2.85 mm
Print temperature
265℃
Types of filament used
TPU85A / TPE / TPB / TPC

Extruder-HT
Dedicated filament for the engineering industry

Print speed
200 mm/s
Filament diameter
1.75 mm
Print temperature
320℃
Types of filament used
PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT / PVA

Extruder-HS
Composite filaments and carbon fiber

Print Speed
150 mm/s
Filament diameter
1.75 mm
Print temperature
360℃
Types of filament used
PACF / PET-CF / PP-CF / PA-GF / PC-ABS / PP-GF / PPS-CF / PPS

Focus on details and efficiency

With a smooth surface and a supported 200 mm/s print speed, Creator 4 is greatly improved in terms of its working efficiency. The double independent extruder ensures the doubling of the production volume. The soluble support filament makes it possible to create free structures, hollow on the inside, as well as other complex structures.

Unlock a full range of applications

Open filament system. Not only does it support standard filament, Creator 4 also designs special extruders for wide flexible filament (85A);

High strength extruder for carbon fiber filament and high efficiency for printing technical materials. All this is possible with the system of interchangeable print modules.

Easy operation

Compared to other additive manufacturing systems, Creator 4 does not have to deal with complex powders and special chemicals; the removable printing surface, the 7-inch touch screen and the user-friendly interface make the Creator 4 an easy-to-use device, taking a few minutes to learn the basic rules of this printer.

Specifications

Column 1	Column 2	Column 3	Column 4
Extruder version	F	HT	HS
Power	AC100–240V/24V/ 6.25 A, 150 W	AC100–240V/24V/ 13.3 A, 320 W	AC100–240V/24V/ 6.25 A, 150 W
Compatible Material	TPU85A, TPE, TPB, TPC	PLA, PETG, PVA, HIPS, ABS, ASA, PP, PA, PC	PC-ABS, PA-CF, PA-GF, PET-CF, PPS-CF
Nozzle diameter	0.4, 0.6, 0.8 mm
Extruder type	IDEX
Maximum print temperature	265 °C	320 °C	360 °C
Environment temperature	65 °C
Maximum print surface temperature	120 °C
Print Area	400350500 mm
Print volume	70 l
Print speed	100 mm/s	200 mm/s	150 mm/s
Display	LCD IPS 7" color
Control	Touch
Connectivity	USB, WiFi, Ethernet
Software	Flashprint
OS Compatibility	Windows, Mac, Linux
