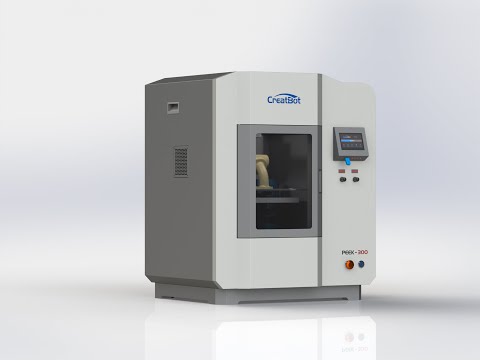

CreatBot PEEK-300 3D printer

CreatBotSKU: CRE-300On order

Price

€15,734.19

Price excluding VAT. The VAT of the delivery country is added.

Business price (excl. VAT)

Request a quote

Product details

Package dimensions82 x 72 x 108 cm

Categories3D printers

Description

The CreatBot PEEK-300 is an industrial grade FDM 3D printer focused on high performance materials such as PEEK, PEKK and PEI (ULTEM). It is designed for reliable and cost effective printing of functional parts in demanding polymers, and it suits scientific, medical and advanced manufacturing applications.

Video: CreatBot

Key features

Intelligent twin extruders with automatic lifting, water cooling and nozzle temperatures up to 480 °C
Heated bed up to 200 °C and an actively heated chamber up to 120 °C for printing large parts without deformation or cracking
Direct Annealing System (DAS) with a temperature range of 0 to 400 °C, controllable during printing, to help produce parts in one go without warping or cracking
Triple thermal insulation with a double insulation chamber, advanced insulation materials and double vacuum plates
Cooling by air pump and liquid cooling
HEPA air filtration that adsorbs impurities and gases from special filaments
Completely closed enclosure with an emergency stop switch
High temperature resistant motors, linear rails, belts and circuits for long lasting high temperature printing
Power failure recovery and filament run out detection that pauses the print

Compatible materials

Technical plastics: PLA, TPU, PC, ABS, ASA, PA6, PETG, PVDF
High temperature materials: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP
Ultra performance materials: medical grade PEEK, PEEK, PEKK, CF-PEEK and GF-PEEK

Typical uses

Materials research in universities and laboratories
Medical and aerospace research parts
Functional prototypes and small series in high performance polymers

Technical specifications

Parameter	Value
Technology	FDM, direct drive, two extruders with automatic lifting
Build volume	300 x 300 x 400 mm (one extruder) or 240 x 300 x 400 mm (two extruders)
Layer resolution	0.04 to 0.4 mm
Nozzle diameter	0.4 mm (0.3 to 1.0 mm optional)
Filament diameter	1.75 mm
Maximum print speed	180 mm/s (55 mm/s optimal)
Maximum nozzle temperature	480 °C
Maximum bed temperature	200 °C
Chamber temperature	Up to 120 °C
Platform	Aluminium with a PEEK PCB printing board
Positioning accuracy	X and Y 0.01 mm, Z 0.0025 mm
Bed leveling	Manual or automatic
Screen	4.3 inch color touch screen
Connectivity	USB connection and USB stick
Software	Creatware, Simplify3D, Cura, Slic3r
File types	STL, OBJ, AMF, G-code
Operating systems	Windows 7, 8, 10
Power supply	220 to 240 V, 50 to 60 Hz, maximum 3000 W
Printer weight	100 kg

Share:Facebook LinkedIn WhatsApp

Frequently asked questions

Can it print PEEK and PEI?

Yes. It is designed for high performance materials including PEEK, CF-PEEK, GF-PEEK, PEKK and PEI (ULTEM), as well as technical and high temperature plastics.

What is the maximum nozzle temperature?

The maximum nozzle temperature is 480 °C. The heated bed reaches 200 °C and the chamber reaches 120 °C.

What is the build volume?

It is 300 x 300 x 400 mm with one extruder and 240 x 300 x 400 mm when both extruders are used.

What is the DAS system?

The Direct Annealing System lets you control annealing from 0 to 400 °C during printing, which helps avoid warping and cracking in large functional parts.

Is the air filtered?

Yes. A HEPA filtration system adsorbs impurities and gases produced by special filaments. The printer is also fully enclosed.
