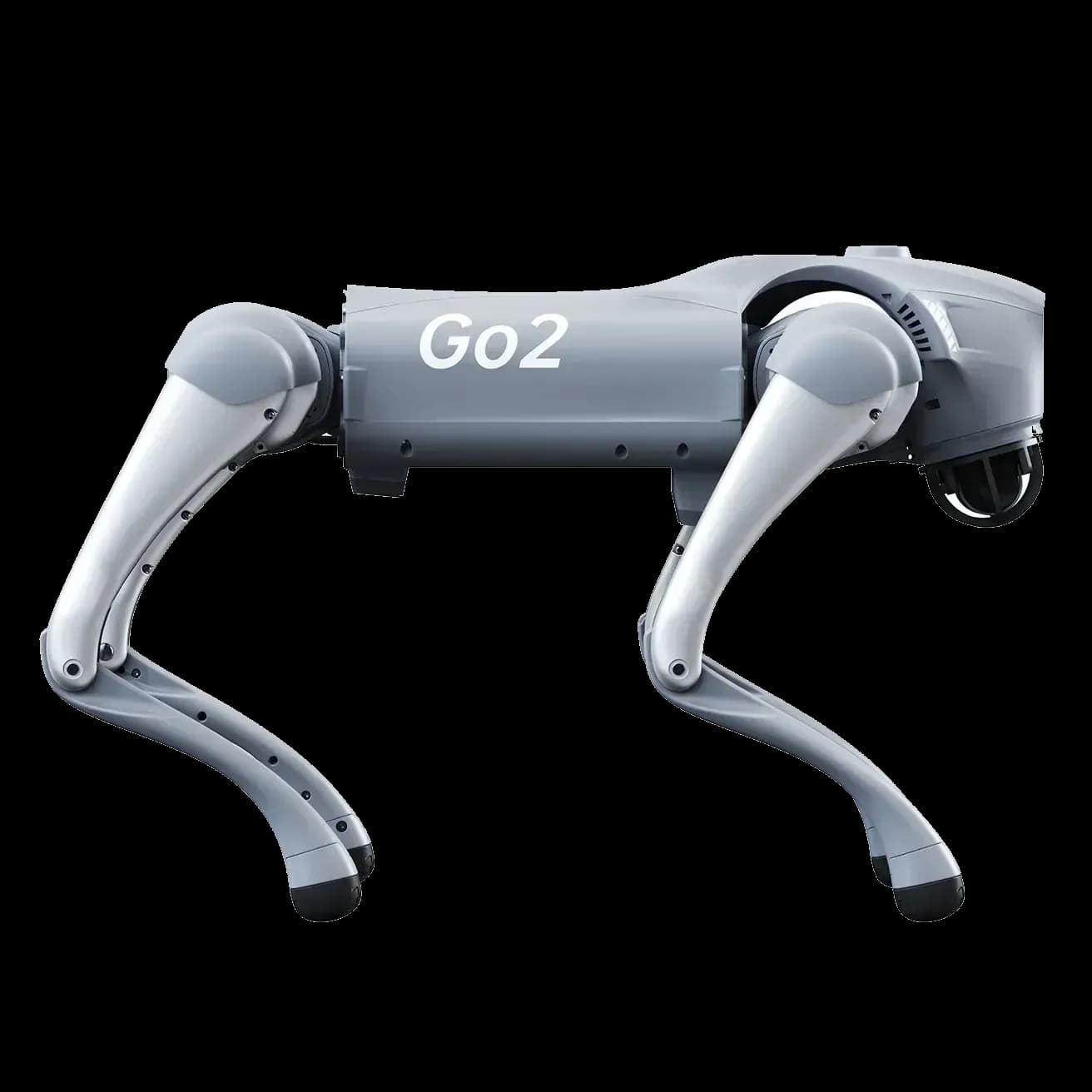

Unitree Go2
Go2 Air, Go2 Pro and Go2 Edu: Unitree quadruped robot with ultra-wide 4D LiDAR, an 8000 mAh battery (15000 mAh optional) and side-following.
Price
Request a quote
Unitree B1
UnitreeOn order
Price
Request a quote
Official manufacturer 3D model, at real scale. Licenses and attributions
Product details
Weight50 kg
Package dimensions110 x 75 x 70 cm
CategoriesQuadruped robots
Description
Unitree B1 – heavy-duty industrial four-legged robot
Exploration and Innovation in Industrial Robotics
B1 has a huge application potential in agriculture and industry, but also in specific missions of security, inspection, mapping, exploration and public rescue operations. These scenarios represent the main directions of use since the bot was launched.
Key Features
- IP68 industrial protection, water and dust resistance at industrial level.
- Heavy-duty robot, designed for heavy tasks and complex environments.
- Operation in all weather conditions.
- Multidimensional perception and full environmental coverage.
- High computing power and precise analysis.
- Adapted for harsh industrial environments and high-risk scenarios.
Unitree B1 Technical Specifications
Unitree B1 Technical Specifications
| Parameter | Specifications |
|---|---|
| Dimensions (standing) | 1126 × 467 × 636 mm |
| Dimensions (folded) | 1202 × 467 × 297 mm |
| Total Weight | ~50 kg (includes battery) |
| Battery weight | ~5 kg |
| Maximum walking load | 20 kg |
| Maximum Static Load | 80 kg |
| Stationary autonomy | ~5 h |
| Walking autonomy (no load) | ~2 h |
| Main processor | Intel i5-1135G7 |
| Sensor computing platform | 3× NVIDIA Jetson Xavier NX |
| Main Sensors | 5× Intel RealSense D430 |
| Battery type | Lithium-ion |
| Battery capacity | 18,000 mAh |
| Rated energy | 932.4 Wh |
| Rated voltage | 51.8 V |
| Maximum charging voltage | 58.8 V |
| Charging time | 1–2 h |
| External interfaces | 7× Gigabit, 4× RS485, 5× USB, 4× CAN |
| Operating temperature | -5°C to 45°C |
| Maximum slopes | 30° |
| Max step height | 20 cm |
| Maximum travel speed | 1.2 m/s |
| Protections | Temperature, current, overload, short circuit |
Recommended products
Similar or complementary products for Unitree B1
Quadruped robotsUnitree

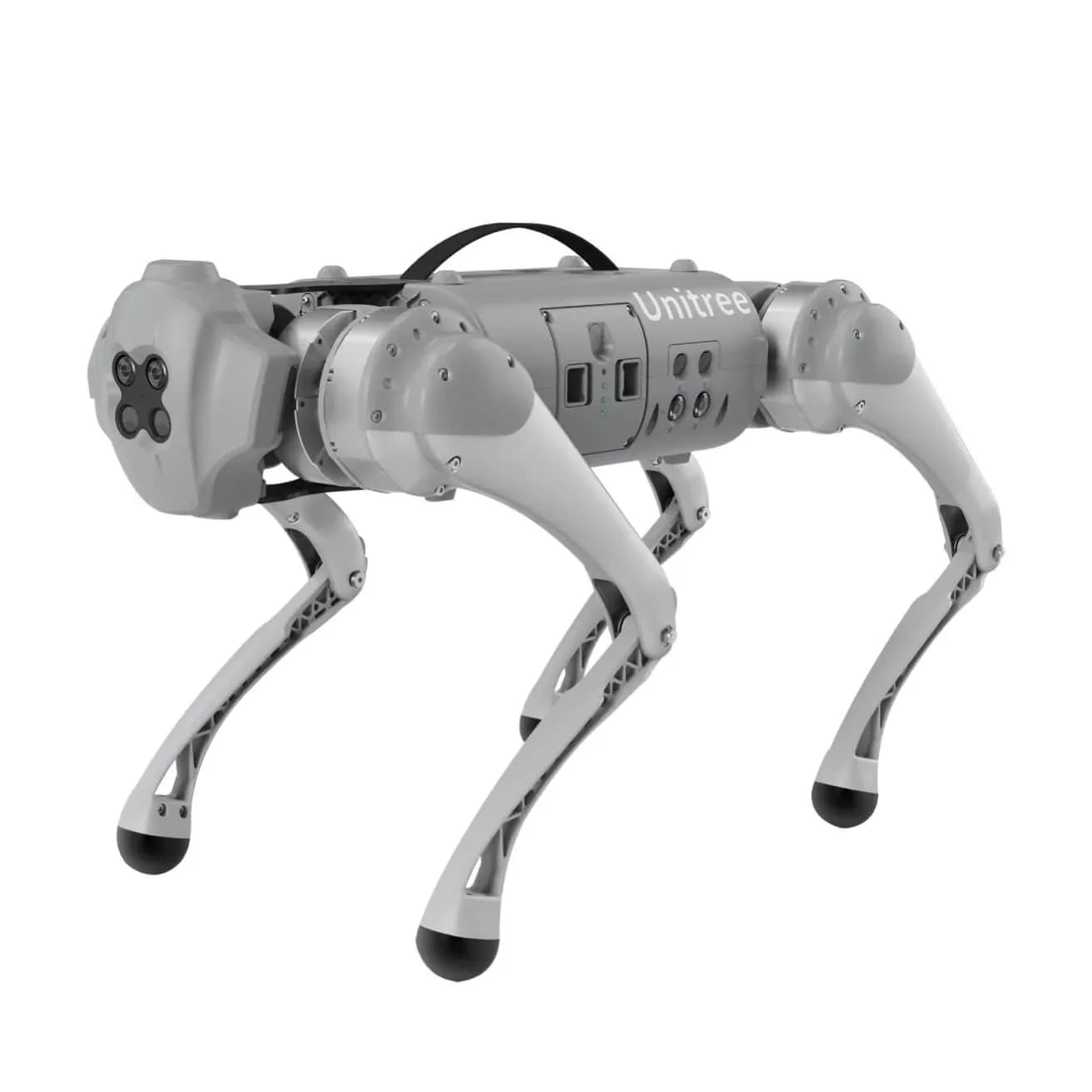

Unitree Go1
Consumer-grade intelligent bionic quadruped robot (presented by Unitree as the first of its kind), with side-following and a 16-core CPU.
Price
Request a quote
Quadruped robotsUnitree
Unitree Aliengo
Professional industrial quadruped robot with 12 servo motors, a walking speed above 1.5 m/s and a depth-perception vision system.
Price
Request a quote
Quadruped robotsUnitree

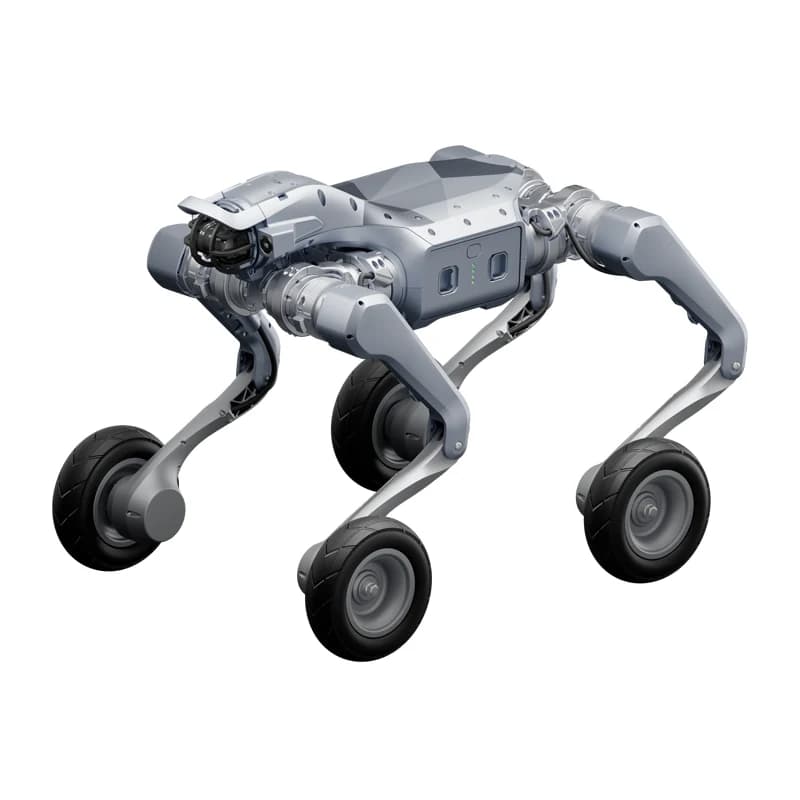

Unitree B2-W with legs on wheels
