PrintDry Pro filament dryer
The PrintDry Pro filament dryer is designed around four drying factors: heat, dew point, drying time and air flow. Every 3D printer user knows the…
Price
€199.40
Excl. VAT
Product details
Weight85 kg
Package dimensions45 x 60 x 156 cm
CategoriesAccessories, 3D printers
Description

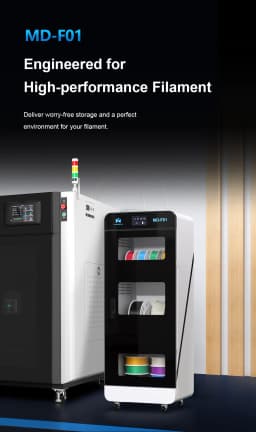

The MINGDA MD-F01 is an all-in-one filament drying and feeding cabinet. It stores and dries filament and feeds the printer automatically, with humidity control and RFID identification. Smart 3-level storage holds up to 6 spools, constant heating at 50 °C dries filament at a low temperature, humidity is kept below 15% (±5%) and automatic filament switching allows uninterrupted printing for more than 10 days.
Key features
- 3-level storage: up to 6 spools (4 × 1 kg and 2 × 3 kg)
- Constant drying at 50 °C: continuous, low-temperature drying
- Smart humidity control: below 15% RH (±5%)
- Automatic filament switching: uninterrupted printing for 10 days or more
- RFID identification: for MINGDA filaments, with usage monitoring
- All-in-one design: dryer and feeder in one cabinet, ready to use
Typical uses
- Keeping filament dry before and during long prints
- Storing several spools in one place with humidity under control
- Feeding a printer automatically and switching spools without interruption
Technical specifications
| Specification | Value |
|---|---|
| Type | Dryer and filament feeding cabinet (accessory) |
| Dimensions | 600 × 450 × 1560 mm |
| Storage space (bottom) | 500 × 340 × 410 mm |
| Net weight | About 85 kg |
| Voltage / Power | AC 220 V / 1000 W |
| Temperature range | Room temperature to 50 °C |
| Target humidity | Below 15% |
| Humidity control accuracy | ±5% RH |
| Filament diameter | 1.75 mm |
| Supported materials | PLA, PETG, ABS, PET-CF, S-Multi, HtPA-CF, PVA and others (flexible materials such as TPU excluded) |
| Max capacity | 6 spools (4 × 1 kg + 2 × 3 kg) |
| Max weight per spool | 3 kg |
| Housing material | Sheet metal + glass |
| Feed speed | 10 to 80 mm/s |
Frequently asked questions
How many spools does the MD-F01 hold?
It holds up to 6 spools across 3 levels, in a configuration of 4 spools of 1 kg and 2 spools of 3 kg. The maximum weight per spool is 3 kg.
Which filaments can it dry and feed?
Supported materials include PLA, PETG, ABS, PET-CF, S-Multi, HtPA-CF and PVA, among others. Flexible materials such as TPU are excluded. The filament diameter is 1.75 mm.
How dry does it keep the filament?
It keeps humidity below 15% RH with an accuracy of ±5% and heats at a constant temperature of up to 50 °C.
How large is the cabinet?
The outer dimensions are 600 × 450 × 1560 mm and the net weight is about 85 kg. The bottom storage space measures 500 × 340 × 410 mm.
What does the RFID function do?
It identifies MINGDA filaments and monitors their usage.
