AgiBot X2 EDU, unassembled kit, black

AgiBotSKU: agibot-x2-edu-kit-negruOn order

Price

Request a quote

Official manufacturer 3D model, at real scale. Licenses and attributions

Product details

Weight33 kg

Package dimensions130 cm

CategoriesEducation, Educational kits, Humanoid robots

Description

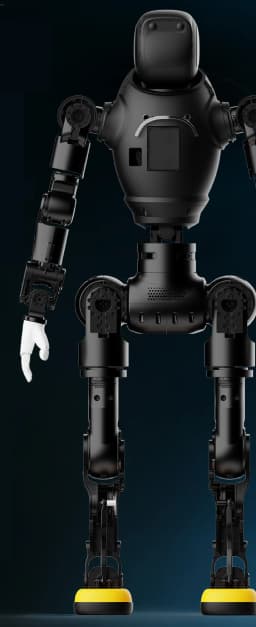

AgiBot X2 EDU is a 1.30 m humanoid for research, education and hands-on training. We supply it as an unassembled kit in black: students assemble it, take it apart and program it from joint level up to complete applications.

Modular assembly and disassembly

The head, torso, PowerFlow joint motors, arms, legs and grippers are independently removable. The kit is built for repeated assembly and debugging, and modules can be bought separately for the lab.

Fully open

Hardware and software. Access to joint, gripper and actuator control, with embedded development and electromechanical integration.
Low-level motion control. For lab work and teaching.
Custom shells. You can design and modify the exterior parts for teaching, competitions, exhibitions and research.

Flexible integration

It accepts grippers, prosthetic hands and dexterous hands such as OmniHand Pro or OmniHand 3 Ultra-M. Open power and data interfaces connect external sensors and devices, and compute can be extended with your own boards.

For schools, universities and competitions

AgiBot provides complete design and assembly guides with videos, plus consumables lists and maintenance support. We use it for robotics education, as a competition development platform and for assembly and maintenance courses.

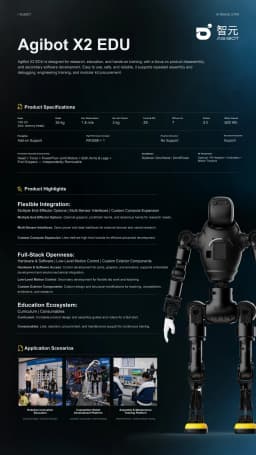

Data from the official AgiBot X2 brochure.

We deliver it, help with the first assembly and train the teachers. We can prepare spare modules and consumables for labs.

AgiBot X2 EDU specifications

Specification	AgiBot X2 EDU
Supplied as	Unassembled kit, black
Height	130 cm, with dummy head
Weight	33 kg
Max walking speed	1.8 m/s
Max end payload	3 kg
Degrees of freedom	29 in total, 7 per arm
Operating time	2 hours
Battery	421 Wh
Perception	Through add-on modules
Compute	RK3588
Proactive interaction	No
Secondary development	Yes
Removable modules	Head, torso, PowerFlow motors, arms, legs and grippers
End effectors	Optional OmniHand hands or OmniPicker gripper
VR teleoperation	Optional VR headset, controllers and motion trackers
