Video: LimX Dynamics

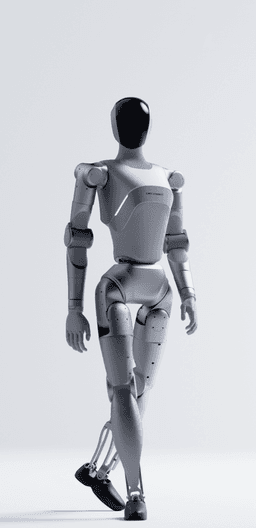

LimX Dynamics Luna
Full-size interactive humanoid robot: 1.60 m, dynamic and fluid movement, built for interaction and live shows.
LimX Dynamics Luna
1.60 m and 56 kg, 27 degrees of freedom.
2nd-generation "Sys 0" motion engine and swarm control for over 200 units.
1.60 m and 56 kg, 27 degrees of freedom.
2nd-generation "Sys 0" motion engine and swarm control for over 200 units.
Luna is a full-size humanoid with a new design language and premium textile finishes, for a natural and elegant presence. The second-generation "Sys 0" motion engine and improved joint motors deliver dynamic, fluid movement. Improved thermal management keeps the joint surfaces cool during extended operation, and battery management extends battery life to about 4 hours, with a dual 10,000 mAh slide-in battery.
Multi-level safety architecture: active fall mitigation, external force detection, a hardware emergency stop and safe action override.
Intelligent swarm control synchronizes over 200 units with millisecond-level precision. According to the manufacturer, the AI task editor lets you describe a scene in natural language, and the AI composes dance, movement, visuals and voice into a complete routine.
This humanoid robot has a complex structure. Please keep a safe distance and use it with care.
- Premium design: new design language, textile finishes
- "Sys 0" gen. 2 motion engine: dynamic, fluid movement
- Improved thermal management: cool joints during extended use
- ~4 hours of battery life: dual 10,000 mAh slide-in battery
- Multi-level safety: active fall mitigation, emergency stop
- Swarm control: over 200 synchronized units
- AI task editor: dance, movement, visuals and voice from natural language
- Maximum motor torque: 200 N·m
- Interaction: face screen, microphone, speaker, LED strip
LimX Dynamics Luna
| Specification | LimX Dynamics Luna |
|---|---|
| Height | 160 cm |
| Shoulder width | 47 cm |
| Arm length (with hand) | 69 cm |
| Weight (with battery) | 56 kg |
| Active degrees of freedom | 27 |
| Degrees of freedom per leg | 6 |
| Degrees of freedom per arm | 5 |
| Waist degrees of freedom | 3 |
| Neck degrees of freedom | 2 |
| End effector | Humanoid hand / fist hand, optional 5-finger hand (6 DoF) |
| Cooling | Air, at the control unit |
| Communication | WiFi 6, Bluetooth |
| Sensors | In-house IMU (6-axis), RGB camera |
| Battery | Slide-in module ×2, 10,000 mAh |
| Battery life | About 4 hours |
| Recharging | Direct / battery swap |
| Charging time | About 1 hour |
| Input voltage | 110 to 220 V |
| Charger output | 58.8 V / 10 A |
| Max arm payload | 3 kg |
| Max walking speed | 5 km/h |
| Max motor torque | 200 N·m |
| Compute (motion control) | RK3588 / 16G / 256G |
| Compute (perception) | RK3588 / 8G / 32G |
| Interaction | Face screen, microphone, speaker, LED strip |
| Software | LimX UP, 20 dance routines, 20 moves, LimX Studio, COSA |
| OTA updates | Yes |
| Warranty | 12 months |
